Price: call us or send an enquiry
Availability: in stock
| Class of excavator | 7-11 t |
| Weight | 230 kg |
| Capacity | 0,22 m3 |
| Width at the base | 250 |
| Inclination | 30 ° |
| Bucket teeth quantity | 2 pcs. |

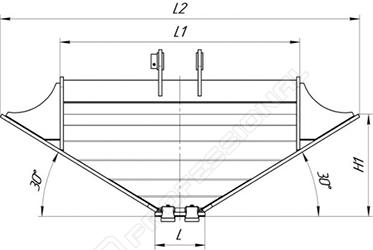

| Height, H | 810 mm |
| Length, B | 700 mm |
| L1 | 1200 mm |
| L2 | 1800 mm |
| H1 | 480 mm |
Applied materials and components
| 1. Blade | 09Г2С | 20 mm |
| 2. Wing | 09Г2С | 16 mm |
| 3. Bottom | 09Г2С | 6 mm |
| 4. Side wall | 09Г2С | 6 mm |
| 5. Pipe | Сталь20 | 102х22 mm |
| 6. Eye (Lifting eye / Lifting lug) | 09Г2С | 16 mm |
| 7. Зуб | 85811440 |
